PRODUCT GENTERProduct

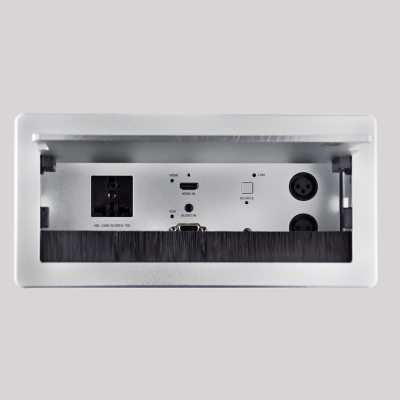

JS-Z301HD: JS-Z301HD is a Tabletop Interconnect Box which supports HD conversion. It uses high performance and professional conversion chip to transform VGA+AUDIO and HDMI signals into HDMI signal output. It supports VGA resolutions from 640*480 to 1920*1080p or 1920*1200. User can switch signals through push-button on the panel.

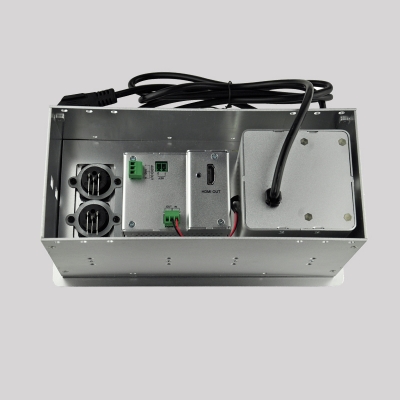

JS-Z301HD Interconnect box with special designed Cover-lift which can protect connectors well. Open, raise the lid and the available cables/connectors will show.

Model	JS-Z301HD
Dimensions	Panel: 266mm130mm Cutout Dimension:254mm117mm
Signal input	VGA+AUDIO、HDMI
VGA input formats	VESA1.1 specification ,support 19201200 to 19201080p HDMI
Output format	HDMI1.4,support embedded audio ， 19201200 resolution*
Audio input	Stereo audio
Input signal noise reduction	Support deinterlacing, 2D and 3D DNR etc
Digital signal input impedance	difference 100Ω
Digital signal input arc	800mVp-p
Analog signal input impedance	75Ω
Analog signal input arc	0.75Vp-p
Signal delay	image delay (1 frame)
Signal output	1 route HDMI (Type-A HDMI latch female connector)
HDMI output	HDMI 1.4 version supports embedded audio (when input source is HDMI, output is Hembed embedded audio; when input source is analog signal, audio input will be automatically selected as external audio)
Audio output	3P Phoenix Type: Unbalance Stereo Analog

Cover-lifting structure;
Top surface available in sandblasting black or silver finishes, custom finishes are accepted;
Supports VGA+AUDIO, HDMI signal inputs, HDMI signal output, includes the push-button with select and switch function;
Adopts digital synchronous identification process technology, image output will be more stable;
Complete SMD craft, special ESD protection technology;
Supports signal timing reformed, shows 1920X1080P HD image perfectly;
Supports Blu-ray embedded audio;
Supports Key function.
